Audi SQ5 3.0TFSI | OEM+ Intake System

Get impressive performance benefits without compromising on the factory look of your engine bay. Revo OEM+ Air Intake Systems utilise the existing air box, replacing any restrictive components with parts precisely engineered to reduce turbulence and improve airflow.

Prices shown are excluding local taxes where applicable

Locate A Dealer
Product now available to buy direct from the Revo Performance Centre. Visit revoperformancecentre.com for more info.

Revo OEM+ Intake

Audi SQ5 (FY) 3.0TFSI

Get impressive performance benefits without compromising on the factory look of your engine bay. Revo OEM+ Air Intake Systems utilise the existing airbox, replacing any restrictive components with parts precisely engineered to reduce turbulence and improve airflow.

The SQ5 intake has its unique intake but does have similarities, in terms of placement and construction, to that of the intake system found in the B9 S4/S5 3.0TFSI. This performed well during the initial testing of volume and flow, however, there was room for improvement. This air intake system upgrade includes a Revo foam filter and a flush-fit silicone hose to minimise air restriction and turbulence, improving airflow and giving you access to more power.

Key Features

  • Improved airflow
  • Increased Performance
  • Three-layer foam filter
  • Flush-fit silicone hose

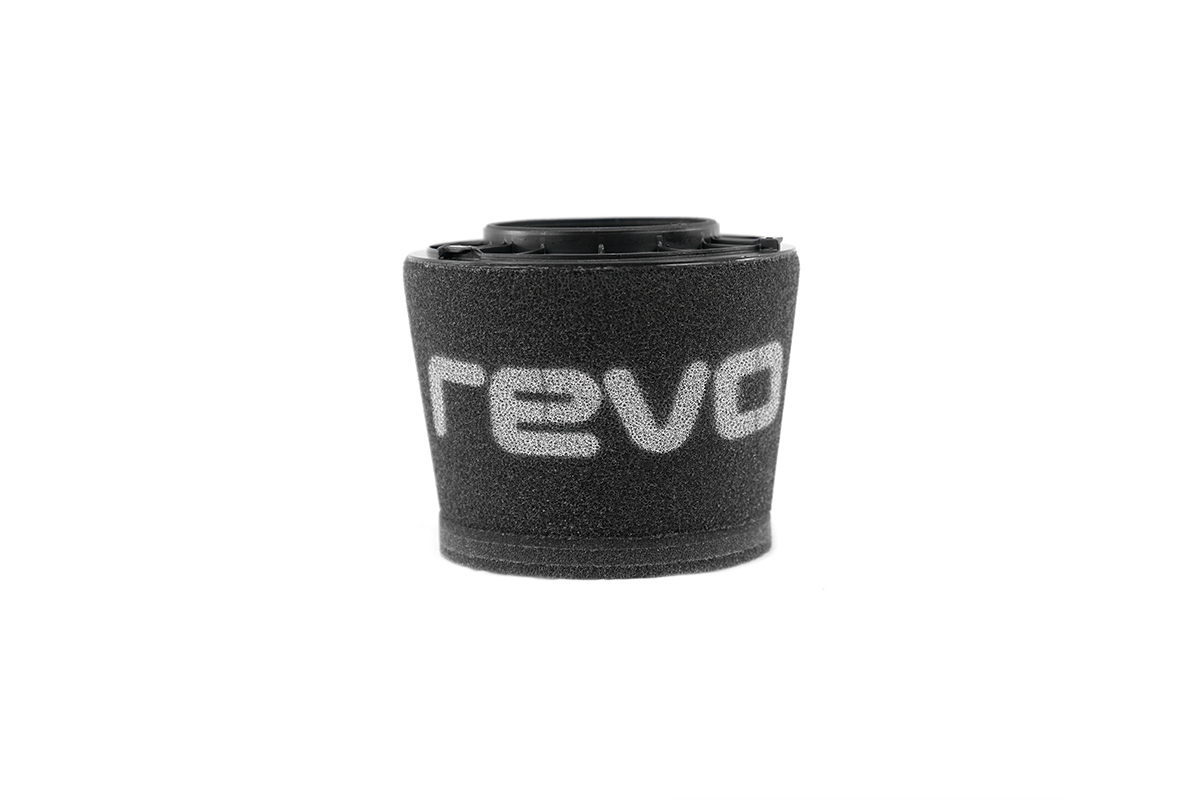

AIRFILTER


The standard paper filter found in most vehicles performs well under normal conditions, however, with increased power it becomes a major choking point in the system. Revo filters work by trapping dirt particles within each of the oiled foam layers while allowing air to negotiate its way through, reducing restrictions and offering much longer service intervals. The new Revo filter features a CAD-designed base plate, allowing a direct fit replacement for the stock airbox.

Revo Audi SQ5 3.0TFSI Air Intake System

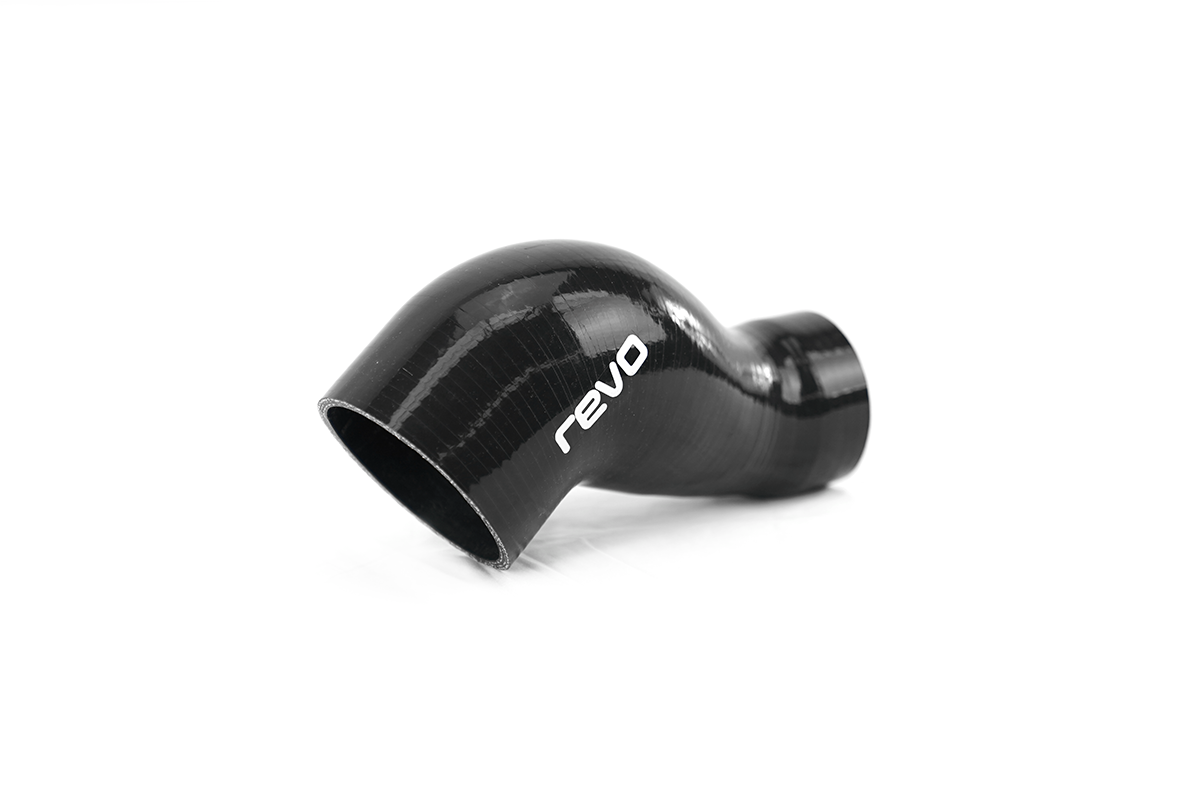

SILICONE HOSE


The plastic hose on the stock system is designed with a corrugated style to flex with the engine movement, while this has its place it also causes a large amount of turbulence as the airflow doesn’t have a smooth direct path to the turbo. We designed the silicone hose with stepped internals to ensure a flush fit, and to minimise turbulence while still allowing for engine movement.

Revo Audi SQ5 3.0TFSI Air Intake System








RESEARCH AND DEVELOPMENT


All Revo products are designed in-house and are rigorously tested utilising an in-house 3D printer, the latest CAD and CFD programs, hub dyno and Revo data acquisition software. The Revo intake allows the turbo to run more efficiently, intake a larger volume of air and minimise turbulence to increase both power and torque, as highlighted during controlled dyno testing.

The Revo SQ5 OEM+ air intake system was tested in-house to compare the performance against that of the Audi OEM intake. First tested on a vehicle running the OEM intake with Revo Stage 2 software, Revo Intercooler & Pipes and a Milltek Sports downpipe, the Revo intake was then installed and tested in the same controlled environment to highlight the benefits of enhanced cooling.

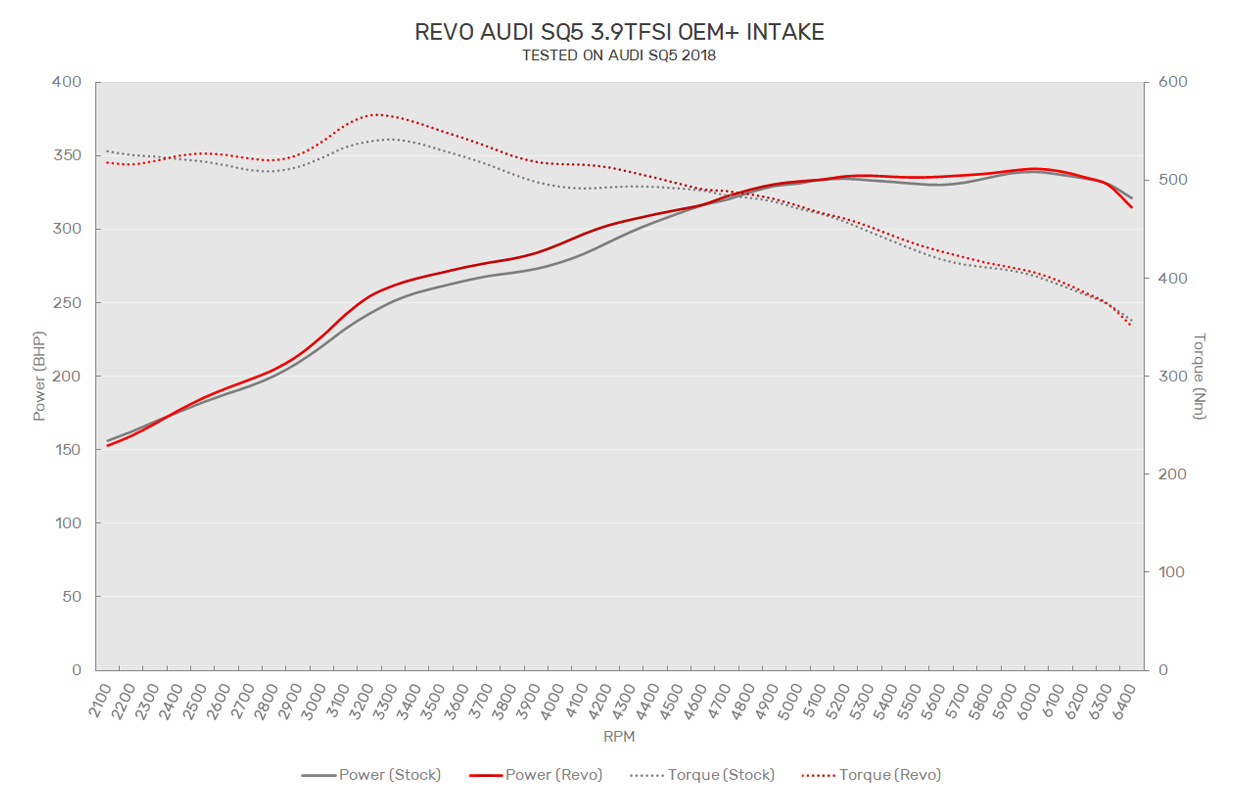

PERFORMANCE


The results show improvements in power and torque from just 2400RPM, but especially in the peak power. The Revo intake offers an average gain of +5WHP, and +9NM torque over the stock part. Increased airflow also delivers impressive peak performance gains of +14WHP @4100rpm and +26NM @3200RPM over the stock intake system.

Revo Audi SQ5 3.0TFSI Air Intake System



Fitment



Vehicle Applications

Manufacturer Model Engine Engine Code Year
Audi SQ5 (FY) 3.0 TFSI CWGD 2016 >

Notes


  • Simple replacement of the OEM part to all other models.
