Air Filter & Intake Kits

Carbon Series | MQB Airbox Lid & Turbo Hose Kit

Beautifully crafted from the highest quality 3K carbon, the Revo Carbon Series is much more than a visual enhancement. Designed to directly replace restrictive OEM components, the Carbon Series has performance woven in to the core of every product.

Prices shown are excluding local taxes where applicable

Locate A Dealer
Product now available to buy direct from the Revo Performance Centre. Visit revoperformancecentre.com for more info.

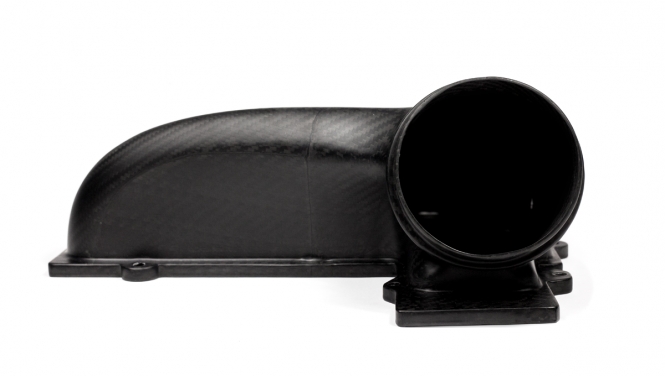

Revo Carbon Series - Air Box Lid

The Revo Carbon Lid and turbo inlet hose have been designed and engineered to directly replace the stock airbox lid, pipe and elbow found in vehicles with the 1.8 and 2.0 TSI engines with an IHI turbo. The Revo Carbon Lid offers a high-quality replacement, with its contoured design it is not only just aesthetically pleasing but designed to improve the airflow and performance of your vehicle.

Key Features

  • Increased performance & airflow
  • Carbon Series Quality
  • Available in both LHD and RHD fitment
  • 16% Larger airbox outlet

OEM vs Carbon Intake


With ample efficiency for a stock vehicle, the OEM system quickly becomes a choking point for the engine when running Revo Software. The Revo Carbon Lid has been designed to increase airbox volume and promote smoother airflow. The closed air system helps eliminate heat soak whilst directing cold air through its curved design directly to the oversized outlet. With a 16% larger outlet, the Carbon Lid drastically improves the rate at which air can flow, ensuring maximum performance at even Stage 3 specification.

Revo Carbon Series Lid MQB Intake




Silicone Hose Design


The Revo Turbo Hose as an increased inner diameter to match the large carbon lid outlet that then gradually tapers to the turbo to optimise airflow, while maintaining the tolerances required to fit both LHD and RHD vehicles. Designed to replace the plastic hose and turbo elbow, this upgrade reduces restriction and maximises smooth airflow improving both power and torque throughout the rev range.


Turbo Inlet


The Revo machined inlet replaces the restrictive elbow found on the IS20/IS38 turbos. The billet aluminium piece securely fits the OE unit using locking tabs and integrated O-rings. With almost double the cross-sectional area compared to other available products, air can stabilise and distribute before a smooth tapered transition to the turbo. Removing the internal steps between components ensures smooth and linear airflow transition between elements, providing uninterrupted airflow and removing any unnecessary turbulence.

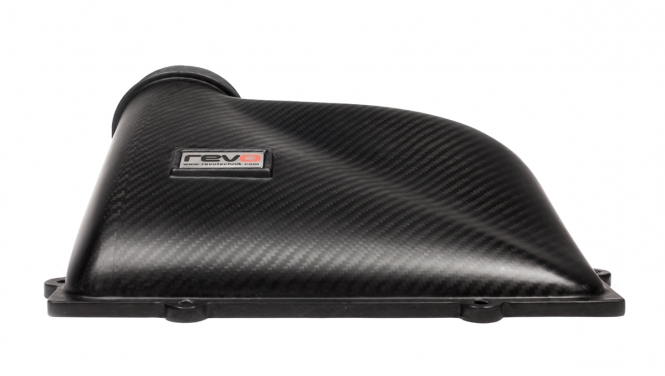

Revo Carbon Series Air Box Lid





Research and Development


All Revo products are designed and rigorously tested in-house utilising 3D printed prototypes, latest CAD and CFD programs, 4 wheel hub dyno and Revo developed data acquisition software. The Revo Carbon lid and Turbo Inlet Hose allows the Stock IS38/IS20 turbo to run more efficiently, by maximising air volume and minimising turbulence you increase power and torque, especially at the top end of the rev range as highlighted during controlled Dyno testing.


Only Revo



Carefully designed airflow channels built into the carbon airbox lid promote smoother airflow to the 16% increased diameter outlet, improving performance and removing the previous restriction. Keeping a fully enclosed unit keeps intake temperatures to a minimum when combined with the carbon fibre material for increased insulation.

Revo Carbon Range Lid

The larger diameter silicone hose maximises the increased airflow from the carbon lid to the turbo and replaces the restrictive OEM plastic turbo inlet elbow with a constant taper that ensures a smooth transition of airflow. The machined inlet has a radius bell mouth matched to the specific internal diameter of the IS20/IS38 turbo allowing the 21% increase in air volume to enter the turbo as smoothly as possible. All the parts together, including the internal steps on the silicone hose, are designed to provide the ultimate in airflow characteristics and provide your vehicle with the hardware required to increase performance.

Revo Carbon Range Lid
Revo flush fit hose

Revo Flush Fit

Standard fitment silicone hose

Standard Fitment

Designed to utilise the bottom part of the stock airbox, the Revo kit offers a performance improvement and looks whilst maintaining an OEM quality fitment. This OEM fitment means that all LHD and RHD MQB platform cars with 1.8 & 2.0 TSI share the same airbox and can benefit from this upgrade.





Graphs


Revo Turbo Inlet Hose
Revo Turbo Inlet Hose



Fitment




Manufacturer Model Engine Year
Audi A3 (8V) 1.8 / 2.0 TFSI 12 -
Audi S3 (8V)/td> 2.0 TFSI 12 -
Audi TT (MK3) 2.0 TFSI 15 -
Audi TTS (MK3) 2.0 TFSI 15 -
Seat Leon (MK3) 1.8 / 2.0 TSI 12 -
Skoda Octavia (MK3) 1.8 / 2.0 TFSI 12 -
Skoda Superb 2.0 TSI 15 -
Volkswagen Golf (MK7) 2.0 TSI GTI 12 -
Volkswagen Golf (MK7) 2.0 TSI R 12 -
Volkswagen Golf (MK7) 1.8 TSI 12 -





Revo Turbo Inlet Hose
Revo Carbon Series air intake systems perform beautifully. Designed to function no matter the power, Carbon
Series intakes look great because of their effective design.


Click to find out more




Notes:

  1. Simple replacement of the OEM part
  2. Fitments for 1.8 TSI & 2.0 TSI Engines EA888 Gen3 with IHI Turbos

Please contact your local Revo Authorised Dealer for additional information and availability.
