Air Filter & Intake Kits

ProPanel Air Filter Element Various VAG 1.2 & 1.4 TSI 2009 >

Revo Pro-Panel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter’s surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used. (RT012M700101)

Prices shown are excluding local taxes where applicable

Overview

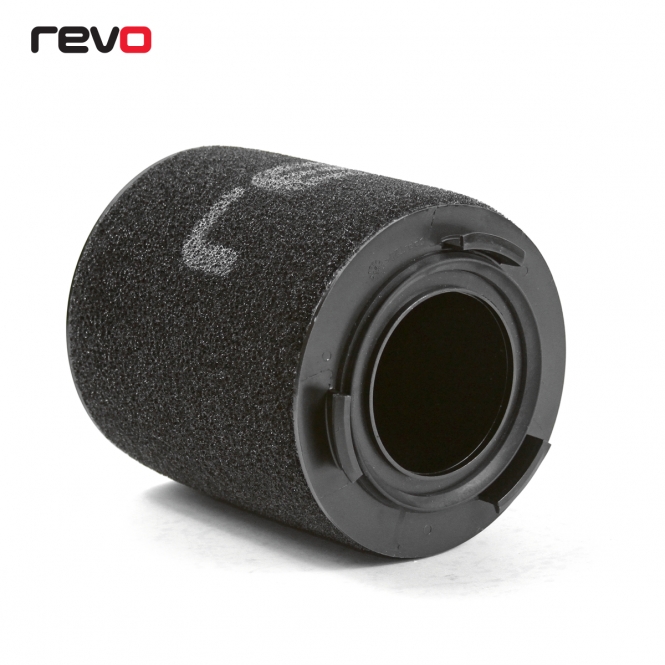

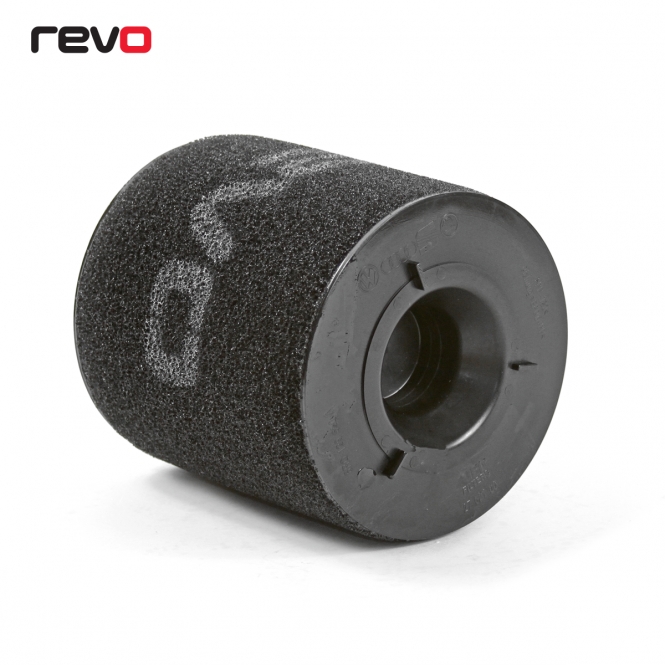

The Revo ProPanel is a high-grade direct replacement filter for your vehicle. Designed as direct replacement filters to fit inside your factory airbox and are suitable for road or competition use.



Benefits

  • Designed to increase horsepower and rate of acceleration
  • Exceptional filtration
  • High air flow with three layers of foam
  • Lifetime warranty
  • Cleanable (Every 10,000Miles or 12 Months)
  • Works with original manufacturers airbox



Design and performance


Why choose foam? Because, compared to paper or other filter technologies, reticulated polyester foam achieves optimum performance against three key criteria:

  • Maximum airflow: the ability to allow air to pass through without causing a large pressure drop.
  • Cleaning efficiency: the capability to arrest a high proportion of airborne dust while feeding the engine clean air.
  • Dust load-up tolerance: the capability to absorb a large amount of dust without reducing air flow capacity.

This design of filter has been used in all fields of motorsport from Formula 1 to the World Rally Championship. The range receives this same attention to detail at the design stage and is then taken into production with consummate quality.



Three layer foam system


Revo ProPanel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter's surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used, choking the engine and reducing performance.

The outer core is a coarse foam designed to trap larger particles, the second layer is a medium foam designed to trap most particles and the inner core is fine foam which will trap any particles small enough to reach it. The triple layer foam design ensures an exceptional level of engine protection and long-term performance advantage.





Revo Three Stage Foam Filter

1: Stainless steel wire mesh

To avoid erosion, only the highest quality steel is used.


2: Course outer layer:

Stops large pieces of dirt and foreign matter from penetrating further. Straightens airflow into subsequent layers.


3: Medium grade middle layer:

This second filtration layer traps most of the harmful dirt that leads to engine damage.


4: Fine inner layer:

Extracts fine particles while allowing full airflow to the engine for maximum power.




Advantages of a Revo ProPanel filter


  • Emissions legal in all 50 US states
  • Will not void vehicle warranty
  • Lifetime warranty (to the original purchaser with proof of purchase)





Fitting




Manufacturer Model Engine Year
Audi A1  1.2 / 1.4 TFSI  2010 >
Audi A1  1.6 TDI  2010 >
Seat Ibiza  1.2 / 1.4 TSI  2010 >
Seat Ibiza  1.6 TDI  2009
Seat Toledo  1.2 / 1.4 TSi  2012 >
Seat Toledo  1.6 TDI  2012 >
Skoda Fabia  1.2 / 1.4 TSI  2010 - 2014
Skoda Fabia  1.2 / 1.6 TDI  2010 - 2014
Skoda Rapid  1.2 / 1.4 TSI  2012 >
Skoda Rapid  1.6 TDI  2012 >
Skoda Roomster  1.2 TSI  2010 >
Skoda Roomster  1.2 / 1.6 TDI  2010 >
VW Polo  1.2 TSI  2009 >
VW Polo  1.4 GTi  2010 - 2014
VW Polo  1.2 / 1.6 TDI  2009 - 2014


Notes:

  1. Simple replacement of the OEM part

Please contact your local Revo Authorised Dealer for additional information and availability.


© Revo

This product is suitable for the following vehicle makes and models

AUDI A1 more info
SEAT Ibiza MK5 (2009 >) more info
SKODA Roomster (2006 - 2015) more info
VOLKSWAGEN Polo (2002 - 2008) more info
VOLKSWAGEN Polo GTi / WRC more info
