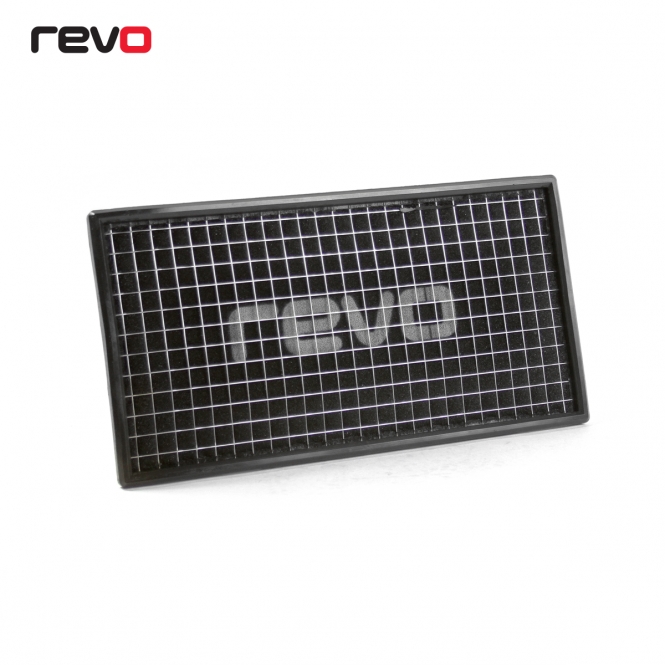

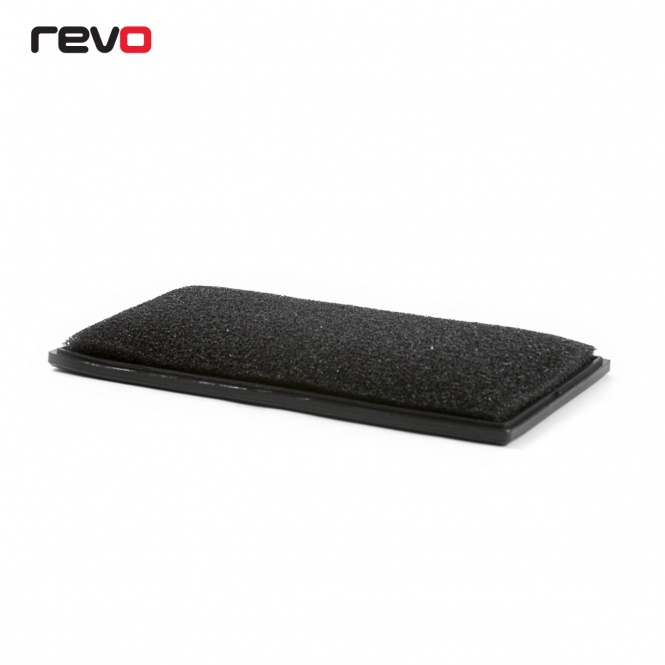

ProPanel Air Filter Element Various VAG 1.8 T/1.9 TDI/ 3.2 V6

Revo Pro-Panel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter’s surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used. (RV412M700101)

Prices shown are excluding local taxes where applicable

Overview

The Revo ProPanel is a high-grade direct replacement filter for your vehicle. Designed as direct replacement filters to fit inside your factory air box and are suitable for road or competition use.



Benefits

  • Designed to increase horsepower and rate of acceleration
  • Exceptional filtration
  • High airflow with three layers of foam
  • Lifetime warranty
  • Cleanable (Every 10,000 Miles or 12 Months)
  • Works with original manufacturers air box



Design and performance


Why choose foam? Because, compared to paper or other filter technologies, reticulated polyester foam achieves optimum performance against three key criteria:

  • Maximum airflow: the ability to allow air to pass through without causing a large drop in pressure.
  • Cleaning efficiency: the capability to arrest a high proportion of airborne dust while feeding the engine clean air.
  • Dust load-up tolerance: the capability to absorb a large amount of dust without reducing airflow capacity.

This design of filter has been used in all fields of motorsport from Formula 1 to the World Rally Championship. The range receives this same attention to detail at the design stage and is then taken into production with consummate quality.



Three layer foam system


Revo ProPanel Filters use multi-layered foam technology to trap dust and dirt while maintaining flow efficiency over time. Using foam increases the filter's surface area and is washable, compared to standard paper and cotton filters which trap dust on the surface and become less efficient the more they are used, choking the engine and reducing performance.

The outer core is a coarse foam designed to trap larger particles, the second layer is a medium foam designed to trap most particles and the inner core is fine foam which will trap any particles small enough to reach it. The triple layer foam design ensures an exceptional level of engine protection and long-term performance advantage.





Revo Three Stage Foam Filter

1: Stainless steel wire mesh

To avoid erosion, only the highest quality steel is used.


2: Course outer layer:

Stops large pieces of dirt and foreign matter from penetrating further. Straightens airflow into subsequent layers.


3: Medium grade middle layer:

This second filtration layer traps most of the harmful dirt that leads to engine damage.


4: Fine inner layer:

Extracts fine particles while allowing full air flow to the engine for maximum power.




Advantages of a Revo ProPanel filter


  • Emissions legal in all 50 US states
  • Will not void vehicle warranty
  • Lifetime warranty (to original purchaser with proof of purchase)





Fitting




ManufacturerModelEngineYear
Audi A3 (8L)  1.8 T  1996 - 2003
Audi S3  1.8 T  1999 - 2003
Audi A3  1.9 TDI  1996 - 2003
Audi TT  1.8 T  1998 - 2006
Audi TT  3.2 VR6  2003 - 2006
Seat Leon  1.8 T  1999 - 2006
Seat Leon  1.9 TDI  1999 - 2006
Seat Leon  2.8 VR6  2001 - 2005
Skoda Octavia  1.8 T  1996 - 2010
Skoda Octavia  1.9 TDI  1996 - 2010
VW Bora  1.8 T  2000 - 2005
VW Bora  1.9 TDI  1998 - 2005
VW Bora  2.3 / 2.8  1998 - 2005
VW Golf MK4  1.8 T  1997 - 2006
VW Golf Mk4  1.9 TDI  1997 - 2006
VW Golf Mk4  2.3 / 2.8 / 3.2  1997  - 2006
VW Beetle  1.8 T  1998 - 2010
VW Beetle  1.9 TDI  1998 - 2010
VW Beetle RS  3.2 V6  2000 - 2001
VW Beetle  2.3 / 2.5  1999 - 2010
VW Polo GT  2.0  2008 - 2012




© Revo Technik 2015

This product is suitable for the following vehicle makes and models

AUDI A3 (8L 1996 - 2003) more info
AUDI S3 more info
AUDI TT MK1 (8N 1999 - 2006) more info
SEAT Leon MK1 (1M 2000 - 2005) more info
SKODA Octavia MK1 (1998 - 2005) more info
VOLKSWAGEN Beetle (1999 - 2010) more info
VOLKSWAGEN Bora more info
VOLKSWAGEN Golf IV more info
VOLKSWAGEN Jetta (MK3 1999 - 2005) more info
