Brakes

VW Transporter | Big Brake Kit | Mono 6

The Revo Big Brake Kit comes complete with everything required to upgrade your stopping power. With Calipers and discs manufactured by industry leaders Alcon® and a floating system designed by our in-house engineers, each kit includes everything you need in one box; brake lines, brake pads, floating discs, mono-bloc callipers, brackets and even brake fluid.

Prices shown are excluding local taxes where applicable

Locate A Dealer
Product now available to buy direct from the Revo Performance Centre. Visit revoperformancecentre.com for more info.

Overview

The Revo Big Brake Kit Upgrade is engineered to improve your stopping power in any condition. Whilst stock brakes are perfectly adequate for general driving; the braking system is often overlooked when enhancing a vehicle's performance.

In-depth testing is a key factor in the development of our products; our brake kits have been tested in a variety of conditions and scenarios to ensure they meet the constant stresses of road driving. Test kits were installed on our in-house development vehicles along with several vehicles around the world and put through their paces to prove their worth over the stock setup; providing exceptional performance combined with consistency and durability you can rely on, corner after corner, stop after stop.

Made by world leading brake manufacturer Alcon, only the best materials, techniques and processes have been used, with every step of the manufacturing process completed in the UK. Alcon has been at the forefront of motorsport braking innovation for over 30 years.

Benefits

  • Low Rotational Mass
  • Improved Pedal Responsiveness
  • Lower Long-term Maintenance Costs
  • Superior Heat Dissipation: Less Prone To Fade
  • Increased Braking Performance
...
...

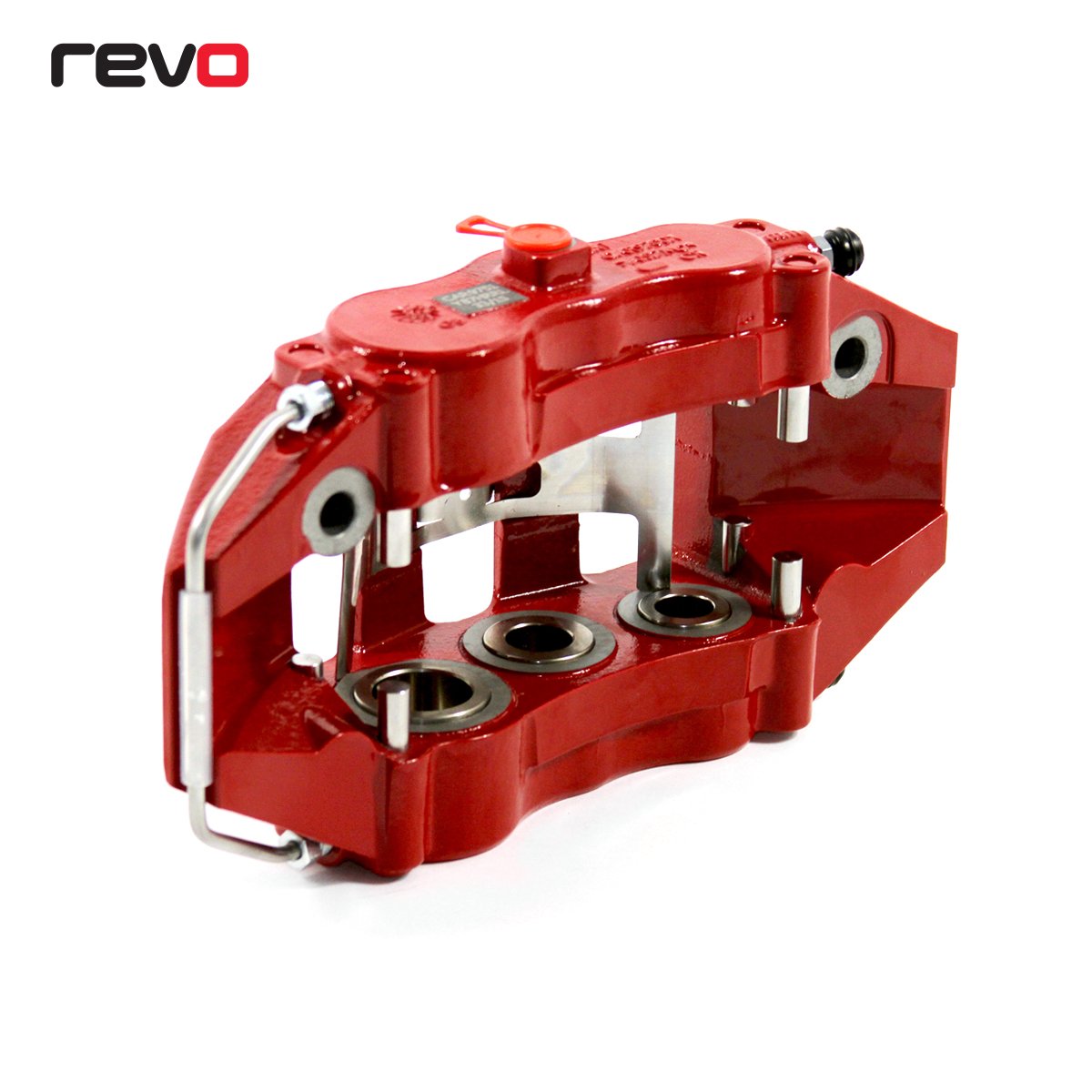

Callipers


Our lightweight six-pot calliper is a single-piece aluminium Mono-bloc design. This design has been used to maximise rigidity, pedal feel and overall braking performance. The calliper incorporates a progressive six-piston setup to give great brake balance, and high quality seals increasing resilience to road salts and other corrosive elements.

Discs


We use a two-piece floating disc and hat design to efficiently dissipate heat. The friction surface features crescent groves designed to increase bite and remove debris from the pad surface giving the perfect balance between brake feel and longevity. The discs feature internal cooling vanes that draw air from the centre of the disc outward to maximise heat dissipation and minimise heat transfer to the callipers, pads, and brake fluid, which plays an all-important part in providing consistent stopping power for your vehicle.

Brake Pads


We supply our brake kit with Ferodo DS Performance Pads that offer a consistent pedal feel and fantastic braking performance both from cold and when hot. Combined with low wheel dusting, minimal noise characteristics, and low disc and pad wear rates this is the ideal pad compound for general road and track driving.

Brake Lines


Our brake kit is supplied with stainless lines; consisting of a PTFE inner and stainless steel braided outer to eliminate the spongy feel of original rubber hoses, provide superior resistance to corrosion, and offer consistent braking performance.

Brake Fluid


Our brakes are supplied with Motul Dot 5.1 brake fluid; specifically designed for brakes systems with ABS. This is a long-life synthetic brake fluid with superior boiling point qualities to conventional Dot 3 and 4 spec. fluids.



Kit Contents


  • Revo by Alcon Caliper x2 (3.3 Kg Each)
  • Revo by Alcon Discs x2 (7.66 Kg Each)
  • 6061 Aluminium Anodised Bell x2
  • Caliper Bracket
  • Revo Stainless Steel Braided Brake Lines
  • Motul Dot 5.1 Brake Fluid
  • Ferodo DS Performance Brake Pads



Technical Documents


The following documents are available to view:

...

Fitment Template

Download the Revo Big Brake 380mm DIsc Template
...

Fitment Template

Download the Revo Big Brake 355mm DIsc Template



Fitment




Manufacturer Model Engine Year
VW T5 All 2003-2015
VW T6 All 2015-2020
VW T6.1 All 2020 >



Notes:

  1. Recommended Revo Authorised Fitment only

Please contact your local Revo Authorised Dealer for additional information and availability.
