Software

More Software for this vehicle: Stage 1 Stage 2 Stage 2 + Stage 3 Stage 4 DQ250 TCU | Stage 1 DQ250 TCU | Stage 2

Stage 4

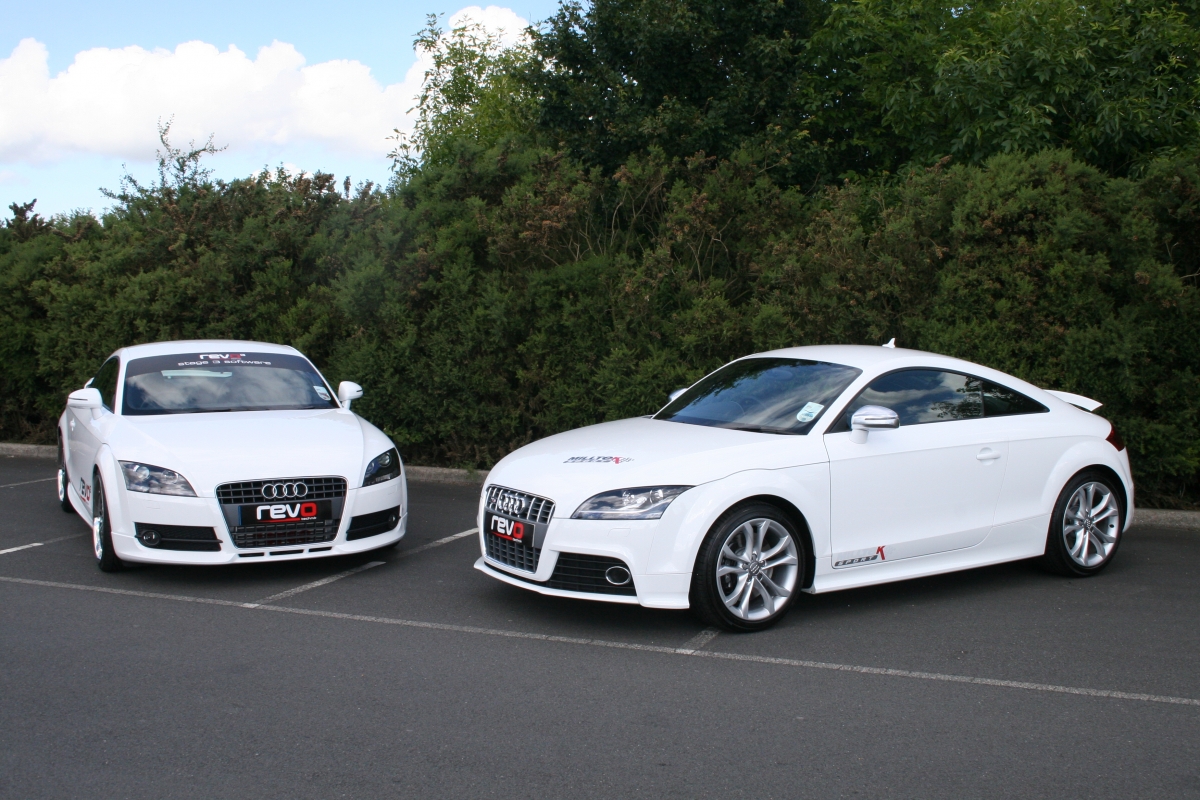

AUDI, TTS, 2.0 TFSI - Turbo K04

Power Torque
Stock 271ps 258lbft
REVO Stage 4 Software from 403ps to 503ps from 380lbft to 460lbft

NOTE: Power is dependant on Fuel Quality, Performance Settings and Conditions, if you hover over the you can see power information in PS, BHP and KW

REVO SPS

In addition this software works with the REVO SPS (sold seperately), SPS Modes for this software: Boost, Fuelling and Timing Adjustable - more info
Locate a Dealer Learn About The Revo Upgrade Programme

Stage 4 2.0TFSI Performance Software is designed for those customers that want the ultimate from their 2.0TFSI. Whilst Stage 3 software is designed to be run with all the bolt on hardware, Stage 4 is the next progression and has been developed to maximise the potential of cars running fully built engines with uprated valve-train. Stage 4 software is a full ‘Race’ map, giving performance levels that could embarrass most supercars. With an 8000rpm rev limit, a very wide range of adjustment Stage 4 software has a lot of flexibility allowing your car to be setup to suit your requirements accounting for race fuel and water meth if you choose to. It is also fully compatible with external boost controllers for those that really want to push things to the next level. Power/Torque output depends very much on the setup and specific hardware used.

Technical Notes

Please click here for technical support information regarding the 2.0TFSI engine

NOTE: Software settings will default to equivalent of stock (B1, F0, T0) when the battery is disconnected. An SPS or your Revo dealer can be used to reset the performance mode settings.

To learn more about REVO software click here

Hardware Requirements:

  • 3071R External Wastegate Turbo Kit with associated hardware for fitting and installation
  • RS4/R8 injectors
  • 3.0"Turbo back exhaust with high flow catalytic converter
  • Uprated or additional intercooler (S3 uses larger stock IC but additional IC is recommended)
  • highflow mechanical fuel pump
  • uprated intank fuel pump
  • uprated engine internals (rods, pistons, valve-train. Revo recommend keeping stock compression)
  • Uprated Engine Mounts
  • Latest revision factory DV
  • Latest revision factory PCV
  • Uprated Brakes
  • NGK Iridium Spark Plugs
  • Uprated Clutch



Hardware Recommendations:

  • Boost gauge                 -        if you want to run an MBC and over 1.6/1.7bar peak
  • Wideband AFR gauge      -        for setup purposes

Revo ECU Software is only available from one of over 400 Authorised Dealers worldwide. You can find your closest dealer by clicking here.

Please note that although we always aim to release ECU Software that covers as many ECU variants as possible, from time to time Revo Software may not be available for your specific vehicle. Your Revo Authorised Dealer can submit a code request direct to Revo HQ if this is the case, however this does not guarantee a file will be made available.

Software available for your AUDI, TTS, 2.0 TFSI - Turbo K04 (271ps)
