More Software for this vehicle: Stage 1

Stage 1
VOLKSWAGEN, Transporter T6, 2.0 TDI - Euro5

Power Torque
Stock 102ps 184lbft
REVO Stage 1 Software from 170ps to 180ps from 252lbft to 265lbft

NOTE: Power is dependant on Fuel Quality, Performance Settings and Conditions, if you hover over the you can see power information in PS, BHP and KW


In addition this software works with the REVO SPS (sold seperately), SPS Modes for this software: Stock and 2 performance mode options + Anti-Theft - more info

Stage 1

All Revo performance Software is designed to safely enhance the driveability of your vehicle, giving access to more power and torque throughout the rev-range while maintaining the extensive factory safety mechanisms. Although Revo offers some of the most substantial performance increases on the market, peak figures form part of a much bigger picture and are never the sole focus during development. Revo Software offers a perfect balance of performance, economy, longevity and safety.

The 2.0L Common Rail (CR)85 is a factory detuned CR140 engine, meaning it has a huge amount of potential. Revo Stage 1 software is designed to work with a standard T5, offering additional performance and useable power without sacrificing any of the smoothness or economy of the engine. You'll find driving your T5 becomes effortless in day-to-day conditions compared to stock, and a whole lot more punch when driven aggressively.

The increases in torque throughout the rev-range give immense flexibility in any gear, and the engine revs out to redline much more enthusiastically than stock. The enhanced delivery of power achieved by the Revo software calibrators means that fuel economy remains unaffected, with some customers noting up to a 10% improvement in fuel economy as the engine no longer has to work as hard in each gear; this can vary depending on driving style.


Software Features


Speed Limit Unlock

The top speed limit for this vehicle has been unlocked.

Speed Limit Unlock

The top speed limit for this vehicle has been unlocked.

Serial Port Switch (SPS)

Switchable Mapping for 2 Performance modes and anti-theft


Research and Development

The 2.0 common rail diesel engine was inserted into the T5 in 2010 and is altogether a smoother and more efficient engine than the previous 1.9 and 2.5 diesels. With the age and mileage of the components on the vehicle increasing, we decided to reinvest months of research and development into re-calibrating the previous tuning to refine the way the power and torque are delivered.

The revised software offers smoother power and torque delivery, with more usable power through the whole rev-range. Advanced Torque Management now produces a smoother torque delivery from 1500 to 2250 RPM to avoid torque judder through the transmission, and has been limited to 360 Nm at the top end. This doesn’t mean the vehicle is slower or less fun to drive, in fact, the opposite, the months of calibration have lead to the 180bhp map being able to sustain 360Nm of torque from 2500 to 3500 RPM.


Different Modes and Switching

The T5 Transporter often plays a dynamic role, being used in both commercial and personal scenarios. We were keen to offer the same flexibility in our software; you have the choice of two power outputs; a more conservative 140BHP/310NM option or a higher-powered 180BHP/360NM option.

Revo software is unique in that it is switchable, if you would benefit from having access to both of these power options then you can purchase our SPS (Serial Port Switch). This switch gives you the ability to choose which of the two options you require by simply plugging into your OBDII port, and also gives you access to an Anti-theft mode included in the software.



Revo VW T5 Performance Software
Revo VW T5 Performance Software

Tech Data

  • 2 Different Power options available

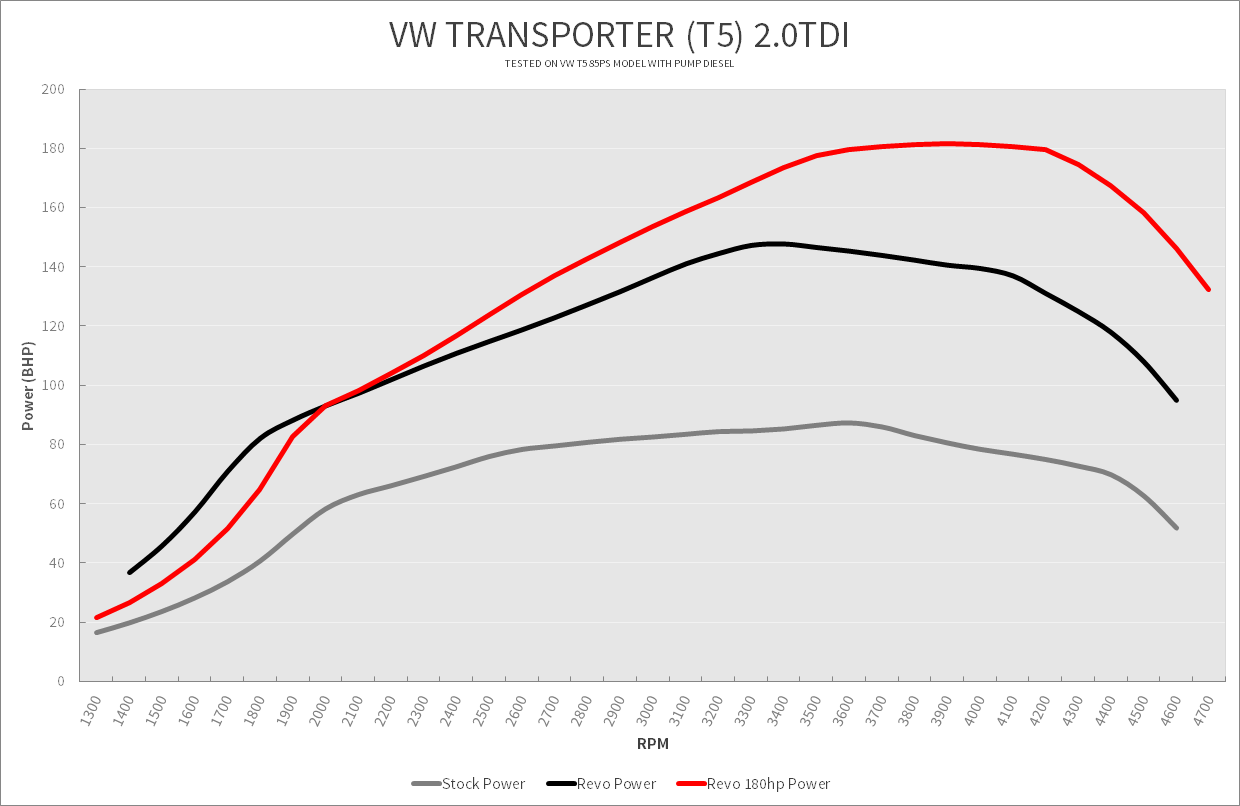

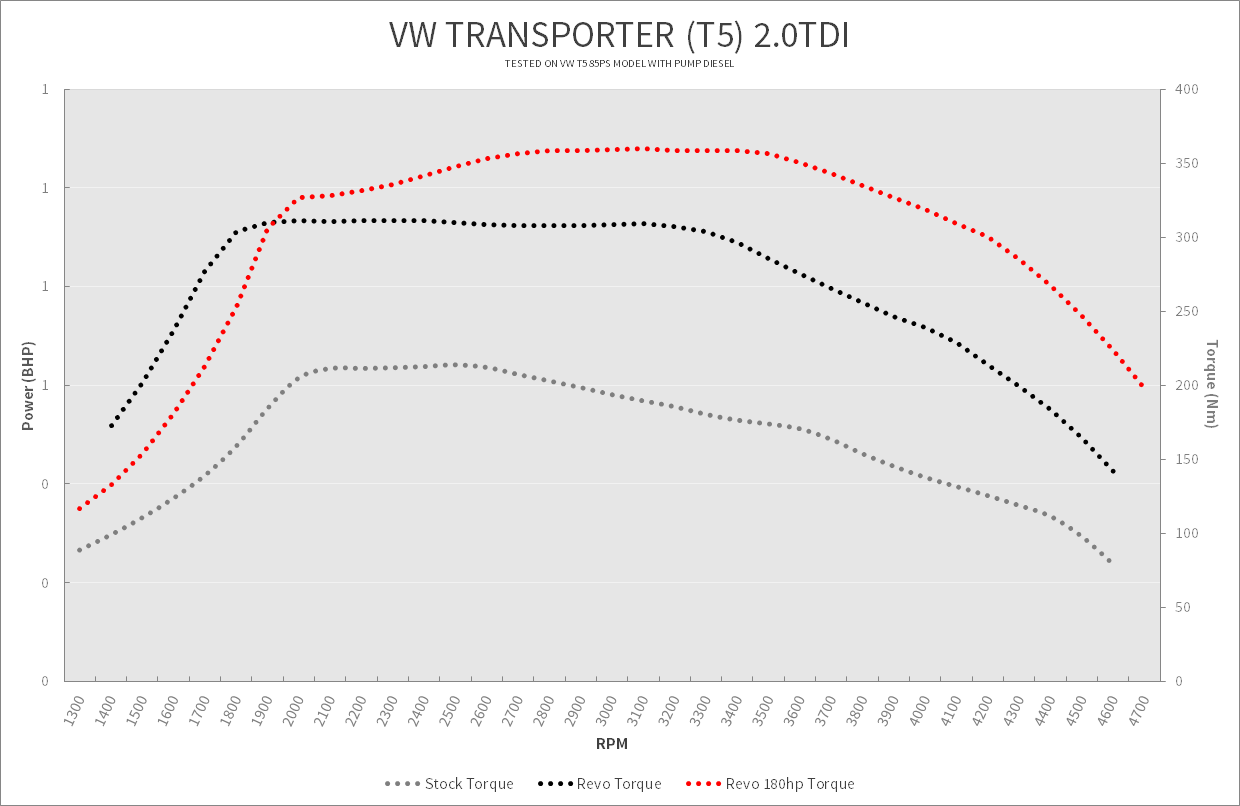

  • Over 300Nm from 1800RPM until 3000RPM, and over 130BHP from 2900RPM to 4200RPM (Mode A)
  • Over 340Nm from 2400RPM until 3700RPM, and over 170BHP from 3300RPM to 4300RPM  (Mode B)
  • Anti-theft Mode Available - Accelerator Pedal stops functioning & vehicle cuts out after a few seconds of being started.



OBD Port Install

Revo Software can be installed quickly and safely via the OBD Port without the need to open the ECU.

Money Back Guarantee

We know you'll love how Revo Software transforms your car. If you don't, we'll give you your money back.

Fuel Economy

Dependant on your driving style, this software will deliver like for like fuel economy in 'normal' driving conditions.


© Revo Technik

Revo ECU Software is only available from one of over 400 Authorised Dealers worldwide. You can find your closest dealer by clicking here.

Please note that although we always aim to release ECU Software that covers as many ECU variants as possible, from time to time Revo Software may not be available for your specific vehicle. Your Revo Authorised Dealer can submit a code request direct to Revo HQ if this is the case, however this does not guarantee a file will be made available.

Software available for your VOLKSWAGEN, Transporter T6, 2.0 TDI - Euro5 (102ps)
