Wheels

Overview

The RF0 wheel is a flow-formed alloy that's lightweight yet exceptionally strong, designed in-house at Revo HQ in the UK. Flow forming is one of the most advanced manufacturing technologies to enter the wheel industry. Flow Forming Technology involves the application of pressure to the inner barrel of the wheel while spinning and after it has been cast. This process stretches and compresses the aluminium, which increases tensile strength. In this respect, the process shares similar properties to those found in the forging process. The final product is lighter, stronger, has increased elongation, and much greater shock resistance as well as an increased load capacity over regular cast wheels.

Whilst the RF0 wheel shares a similar design concept to our previous generation RV0, the more advanced manufacturing process offered through flow forming allows for more definition in the design, particularly noticeable in the spokes and rim edge fillets.

By reducing the weight of your wheels 'unsprung weight' your suspension starts to have a much easier time. Each bump can be controlled more quickly and easily. This helps keep your tyre in contact with the road for longer, which is obviously great news for car control and braking. Reducing the 'rotational mass has its benefits too.

A classic/timeless motorsport look featuring an embossed Revo logo and branded centre cap to compliment the subtle styling.

Available in a choice of Hyper Silver, Gloss Black, Matte Bronze & Matte Anthracite.

Load rated at 880kg per wheel.

Benefits

• Flow formed manufactured
• Lightweight under 12kg
• Fits Revo big brake kit*
• TÜV approved

Colour Options

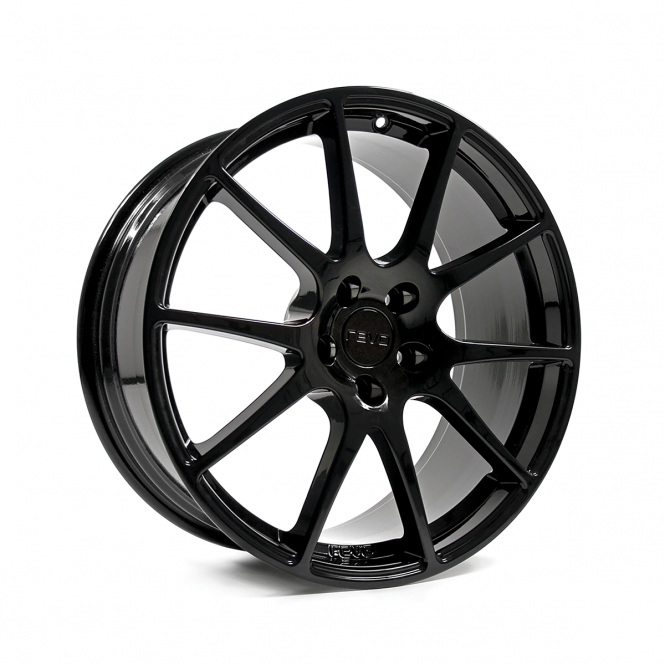

• Gloss Black

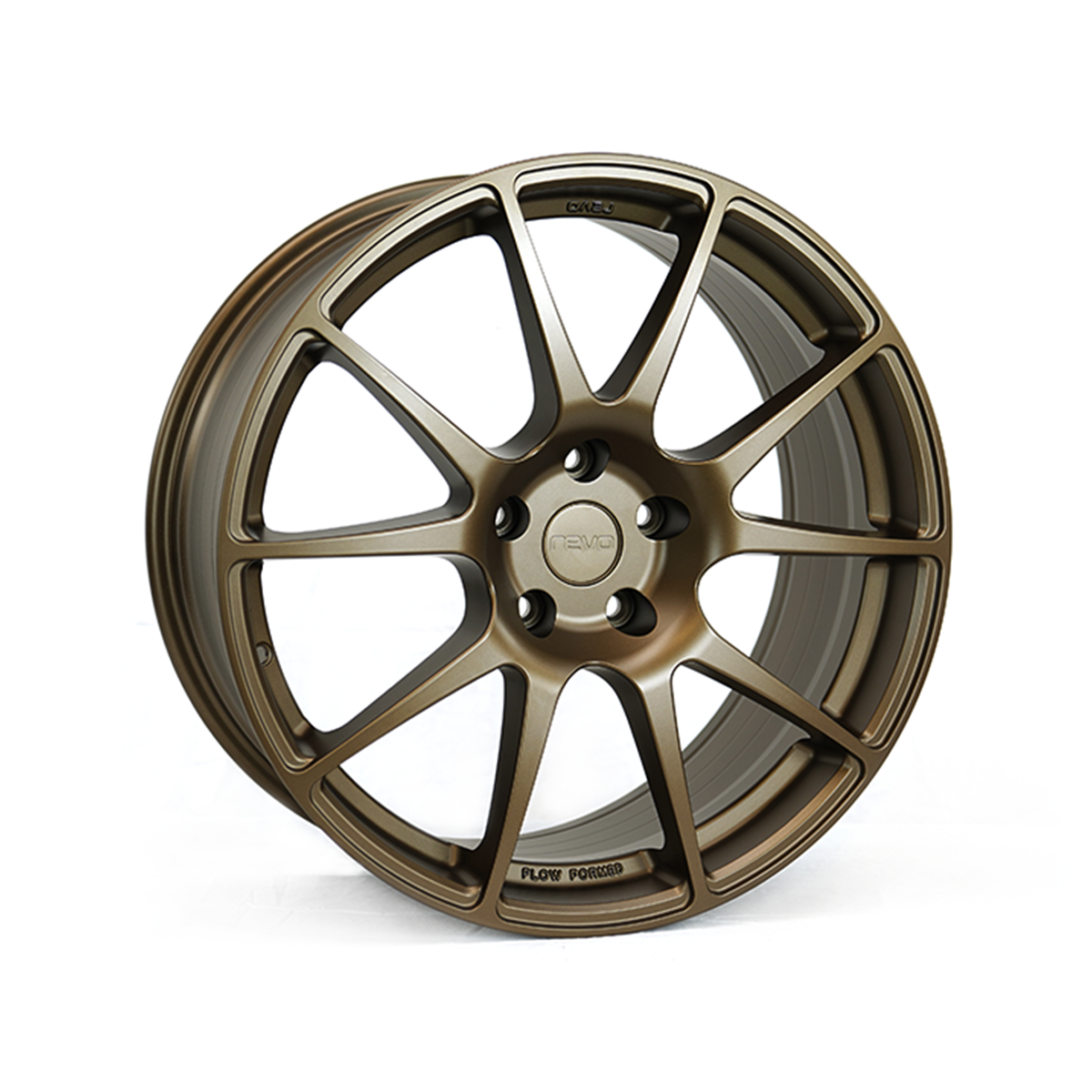

• Matte Bronze

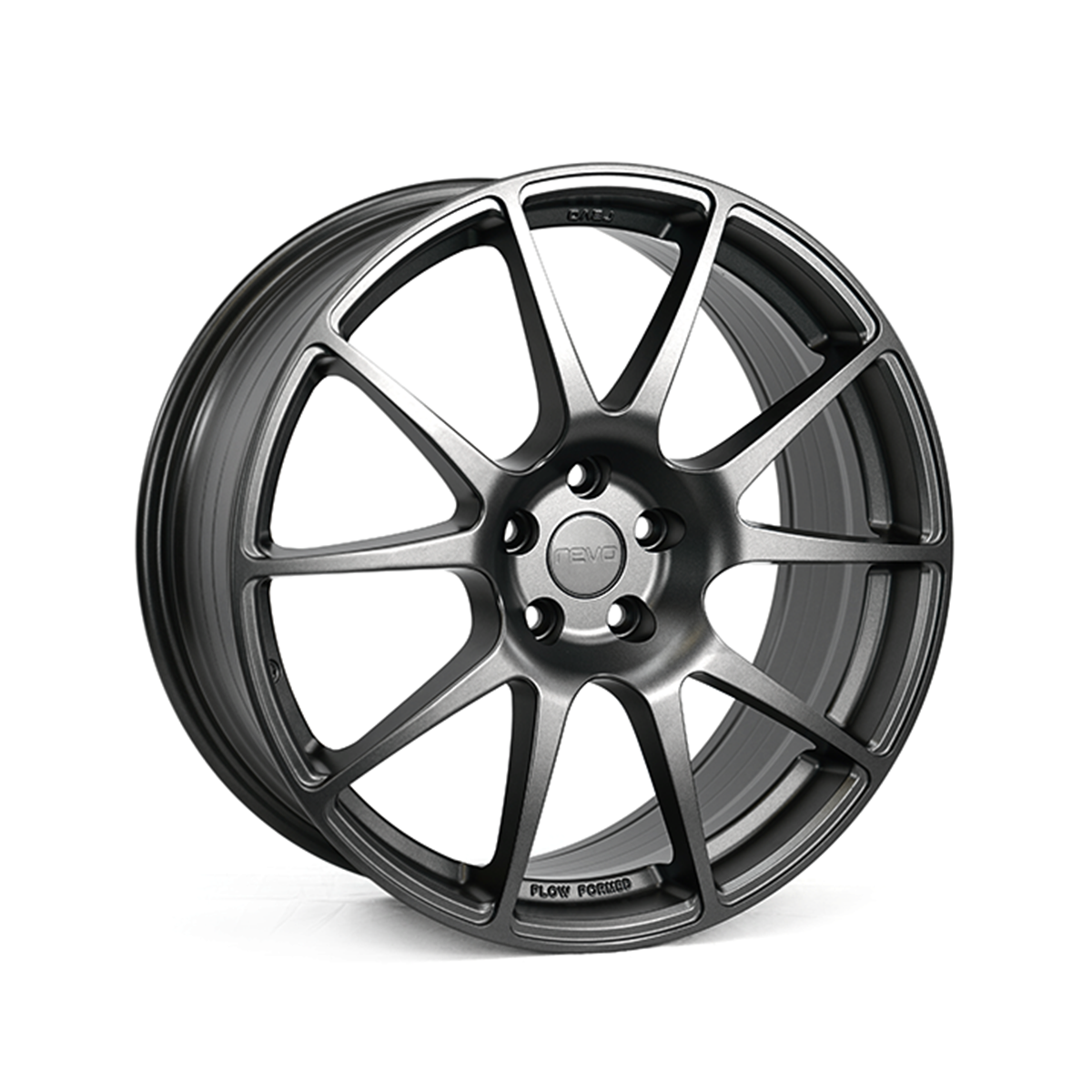

• Matte Anthracite

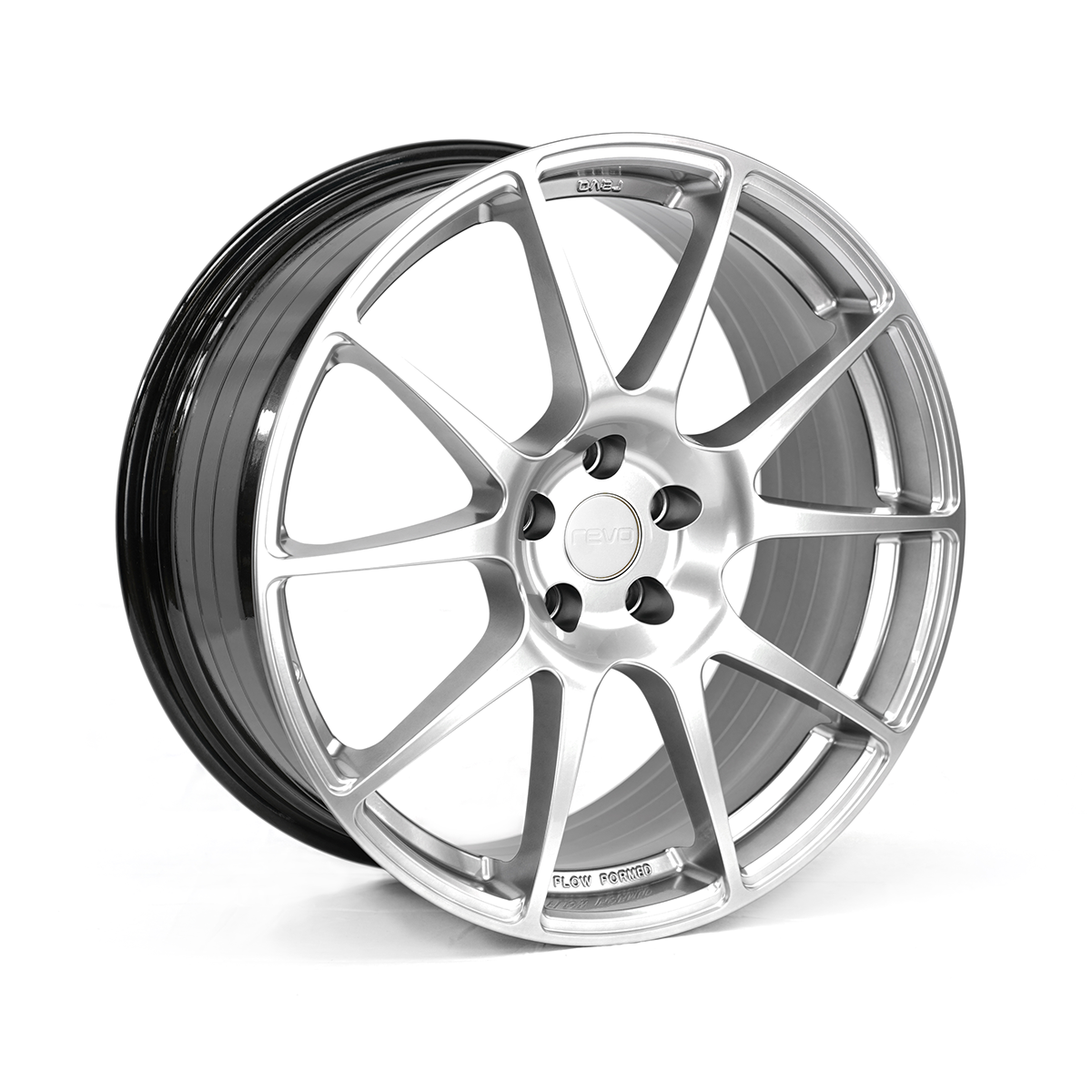

• Hyper Silver

Fitting

 RF020 Wheel 20 x 8.5j, 5 x 112, ET45, CB 66.6mm – The below fitments will require a 66.6mm to 57.mm spigot ring which is included with this wheel size.

Revo Big Brake Kit

The RF020 wheels were also designed to fit with all Revo brake kits without the need for spacers.
